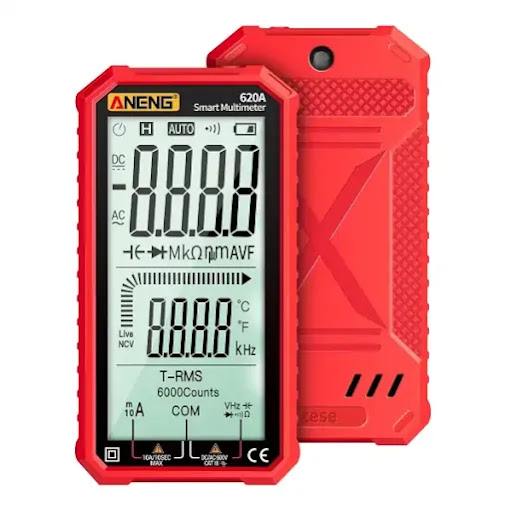

A different Polymer with a huge screen and advanced technical features automatic True RMS also measures the temperature and capacitance of the capacitor, at an ABSOLUTE value.
Ένα διαφορετικό Πολύμερο με τεράστια οθόνη και προηγμένα τεχνικά χαρακτηριστικά αυτόματο True RMS επιπλέον μετρά θερμοκρασία και χωρητικότητα πυκνωτή , σε ΑΠΕΧΤΗ τιμή.
Προσοχή: Στην παραγγελία μην ξεχάσετε να επιλέξετε το χρώμα που θέλετε είναι διαθέσιμο σε 2 χρώματα Μαύρο και Κόκκινο
Features:
Manual + Atuo test
6000 counts digital display
True RMS
AC DC Voltage Measurement
AC DC Current Measurement
Continuity measurement
Resistance measurement
Diode test
Capacitance measurement
Temperature measurement
Frequency measurement
Specifications:
● Select measurement function and range automatically.
● Overload protection throughout the range.
● Max. voltage between measurement terminal and ground: 600V DC or 600V AC
● Display: 4.7-inch LCD
● Max. display value: 6000 digit.
● Polarity indication: Automatic indication, and ‘ - ’indicates negative.
● Over range display: ‘0L’ or ‘-0L’.
● Sampling time: About 3 times/second.,bargraph 10 times/second
● Unit display: Function and electricity quantity unit display.
● Automatic shutdown time: 15 minutes
● Power supply: 1.5V AAA battery × 2( not included)
● Battery under-voltage indication: LCD display symbol
● Temperature coefficient: Less than 0.1×accuracy/℃.
● Operating temperature: 18℃ ～ 28℃.
● Storage temperature: -10℃ ～ 50℃.
| Range | Resolution | Accuracy | |
| AC current | 6000mA | 1mA | ± (1.0% reading + 8 digits) |
| 10 A | 0.01 A | ||
| DC current | 6000mA | 1mA | ± (1.0% reading +5digits) |
| 10 A | 1mA | ||
| DC voltage | 6V | 0.001V | ± (0.5% reading + 3 digits) |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| AC voltage | 6V | 0.001V | ±(0.8% reading + 5 digits) |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| Line on-off test | 1Ω | If resistance of the line | |
| being measured is less than | |||
| 50Ω, buzzer in instrument | |||
| will make continuous | |||
| alarming sounds. | |||
| Resistance | 6000 | 0.1Ω | ± (0.8% reading + 3 digits) |
| 6kΩ | 0.001kΩ | ||
| 60kΩ | 0.01kΩ | ||
| 600kΩ | 0.1kΩ | ||
| 6MΩ | 0.001MΩ | ||
| 60MΩ | 0.01MΩ | ||
| Diode test | 1 V | 0.001V | Testing current ：about 1mA |
| Open circuit voltage :about 2.8V | |||
| The display shows an | |||
| approximation of the diode | |||
| forward pressure drop | |||
| Temperature | -40~1000 °C | 1°C | ± (1% reading +3°C) |
| -40-1832 °F | 1°F | ± (1% reading +3℉) | |
| Frequency | 100.0 Hz | 0.1Hz | 土（ 1.0%reading+ 5digits) |
| 1000Hz | 1Hz | ||
| Capacitor | 6nF | 0.001nF | 士( 10%reading + 40 digits) |
| 600nF | 0.1nF | ±( 2.5%reading+ 20 digits) | |
| 6uF | 0.001 uF | ||
| 60uF | 0.01 uF | ||
| 600uF | 0.1uF | ||
| 6mF | 1 uF | ||
| 60mF | 0.01mF |
Package Include：
1 x Multimeter
1 x Pair of Test Leads
1 x Temperature Cable
1 x English User Manual
1 x Packaging Box
